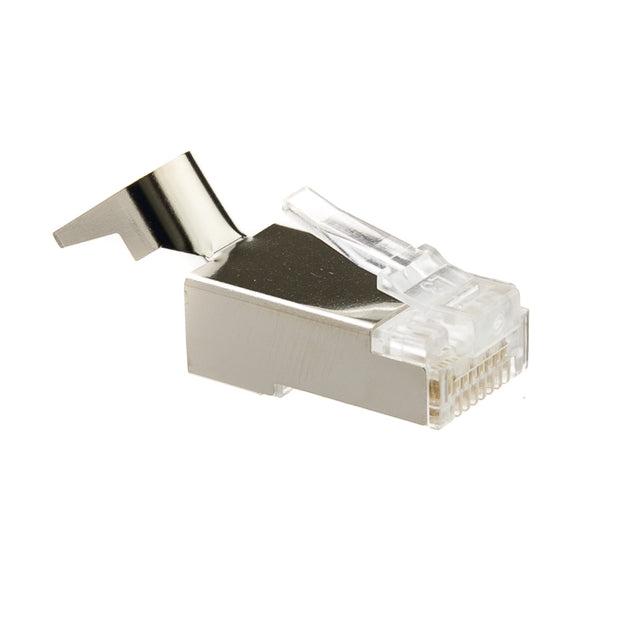

Platinum Tools Shielded Cat6a Crimp Connector for Solid Cable, includes wire guide insert, POE Compliant, 100 pieces

Platinum Tools shielded Cat6a RJ45 Crimp Connectors are designed for use with solid shielded Cat6a cable. So when you are ready to deploy a shielded 10 Gigabit network or merely the infrastructure for one look no further. These connectors are composed of two pieces, the RJ45 modular plug and a wire guide insert which helps keep the individual conductors in the appropriate alignment.

Please be advised that this connector is only compatible with the Platinum Tools Tele-TitanXg(12515C) and Tele-TitanXg 2.0 Crimp Tool(12516C).

• Max cable OD: 8.5mm/0.335"
• Max conductor OD: 1.35mm/0.053"
• Individual conductor OD range: 0.042” - 0.053” (1.07mm-1.35mm)
• Wire gauge range (AWG) 24—22
• Designed for both shielded and unshielded cabling
• 50µ Gold Contacts
• 1,000 Mating Cycles
• Operating Temperature: -40C to 85C
• UL and RoHS compliant

• Warranty: 1 year
• Wire Gauge: 22 - 24 AWG
• Weight: 0.85 lbs
