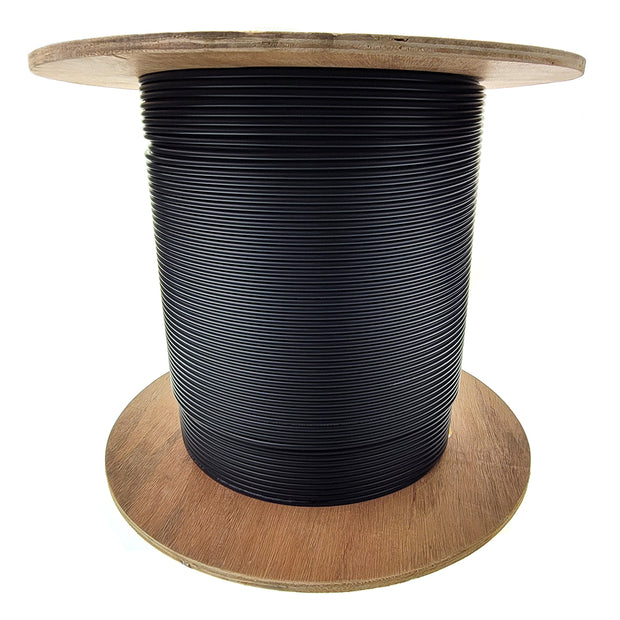

Our Steel Armored Fiber Optic Cable features Rodent Resistant Spiral Steel Armor, 6 strands of OM1 62.5/125um Multimode Corning® InfiniCor® 300 core, and an black outdoor plenum rated jacket.

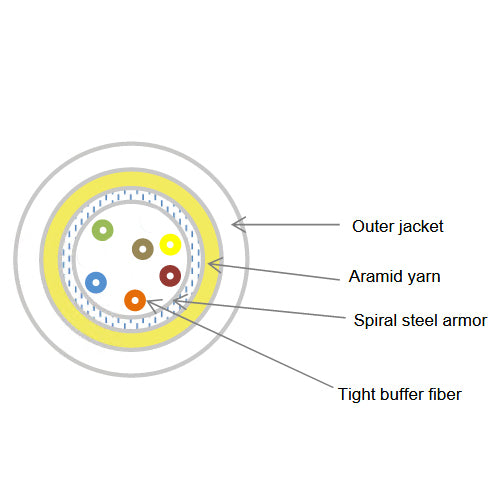

This armored cable consists of 0.9mm tight buffered fiber surrounded by an Aramid yarn (similar to Kevlar®) strength member. The core is protected by a spiral-wrapped steel tube that offers an easy installation, rodent protection, and high crush, pressure, and tension resistance during installation and deployment. Outdoor Plenum rated cabling is primarily used for outside plant (OSP) applications typically bridging into the build/plant, it can be Installed in walls, between floors, under data center floors, in plenum air handling ducts, and of course on outside walls.
Common Applications include Fiber To The Home (FTTH) access networks, Telecommunication Networks, CCTV Networks, Data communications Networks, Local Area Networks, and more.
Details
Fiber Count: 6 cores
Fiber Type: Corning® InfiniCor® 300
Cable Type: 900um Tight Buffered
Buffer Material: PVC
Strength Member: Aramid Yarn
Armor: Spiral Steel
Cable Color: Black
Jacket Rating: Plenum Rated
Optical Fiber Characteristics
Core Size: 62.5um
Wavelength: 850nm / 1300nm
Max. Attenuation: 3.5 / 1.5 dB/km
Bandwidth(EMB): 850nm: 200MHz
Cladding diameter(um): 125±2.0
Core-Clad Concentricity: ?1.5 um
Cladding non-circularity(%): ?0.1.0
Coating-Cladding Concentricity(um): ?12.0
Coating diameter(um): 242±5
Core diameter(um): 62.5±2.5um
Effective Group Index of Refraction(Neff)
850nm:1.496
1300nm:1.491
Fatigue Resistance Parameter(Nd): 20
Temperature Dependence: -60~85°C
Temperature-humidity cycling: -10 to +85°C,98% R.H.
